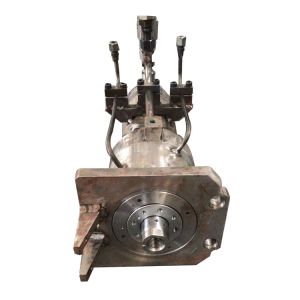

Oem 100 125:45 90:150-30 High-temperature Resistant Double Stroke Oil Cylinder Hydraulic Cylinders Dry-Pressing Cylinder Good Hydraulic Cylinders – We Make Sure Inside Parts
The tube follows GUOYUE CD250 style.
Tube steel can be 45#, 42CrMo, or 27SiMn.
Hole is ground to H8 and feels smooth, Ra under 0.4 μm.
Head, base, ears, and piston are only 45# steel.
We do not use cast iron or cast steel. Slow-Down Parts
You can pick fixed bumpers or floating bumpers so the rod slows down safe at any speed or load. Welds
We hit every heavy-load weld with ultrasound.
This takes away most of the stress and makes the weld last longer. Seals
We only use top seals from NOK (Japan), Trelleborg (Sweden), Merkel and GP (Germany).
We do not use local seals. Checks
Each cylinder is tested to GB/T15622-2005 and our own Q/GAKY014-2023.
You get a test sheet and a pass paper. Promise
We give one year cover from ship date.
If it breaks because of how we made it, we fix or swap it for free.
This cylinder is strong. It uses thick steel and hard rod. It does not bend. The seal keeps oil in, no leak. It has many tubes that slide out one by one. It lifts high but stays short Advantages: She’s the gentle giant who never falters under heat or load. Custom-built with a 100 mm bore and dual strokes (125:45 and 90:150-30), this double-stroke cylinder gives your machinery the precision and strength to handle high-temperature tasks with ease. High-grade seals and chrome skin laugh at the heat and pressure, ensuring every press is as smooth as silk. OEM fit means she slides straight into your dry-pressing machine—no shims, no swearing. Every day she whispers, “I’ve got this,” and the operator feels the press run smoothly without a hitch. Application Scenarios: Picture a ceramics factory at dawn: this cylinder powers the dry-pressing machine, turning powders into intricate ceramic parts with uniform density and precision. Or a manufacturing plant where she helps form heavy metal components, pressing with just the right amount of force to ensure every detail is perfect. From ceramic tiles to metal parts, she’s the quiet heartbeat that keeps production running smoothly, turning raw materials into finished products with grace and reliability.

item	value
Warranty	1 Year
Showroom Location	not have
Brand Name	Guoyue
Place of Origin	China
	Jiangsu
Pressure	not have
Structure	Y
Weight	195
Power	16MPa
Dimension(L*W*H)	1020*310*306mm
Rod Diameter	100mm
Maximum Stroke	180mm
Outer Tube Diameter	127mm
Inner Tube Diameter	100mm
Product name	Hydraulic Cylinder
Material	Stainless Steel
Usage	Machinery
